5th Gen (Broadwell)

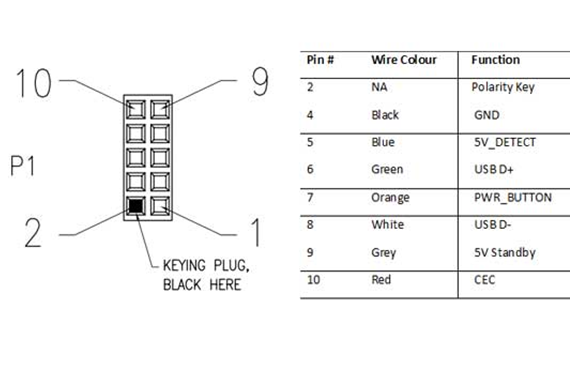

Step 1 - Identify Connectors

Step 2 - (Model Dependent) Solder Wires To Pads

  • Depending on the NUC model you own, this step may not be necessary

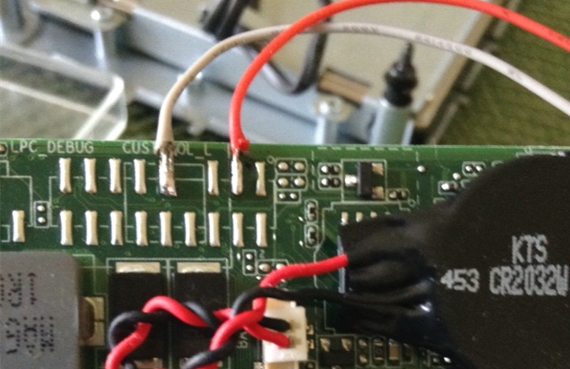

  • If your model lacks the header fitted at the factory, remove the pre fitted connectors and strip a small amount of wire back, using a soldering iron and a small amount of solder, attach the red and grey wire as shown
