Key Technologies:
HDBaseT Pro 100m at 1080p, 70m at 4K

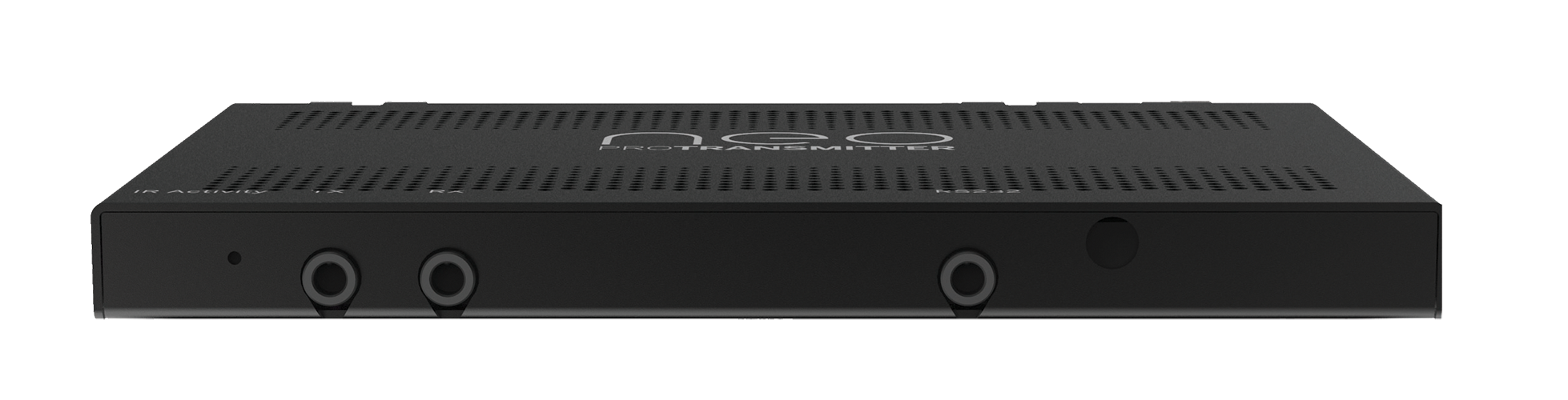

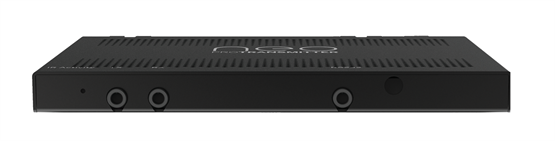

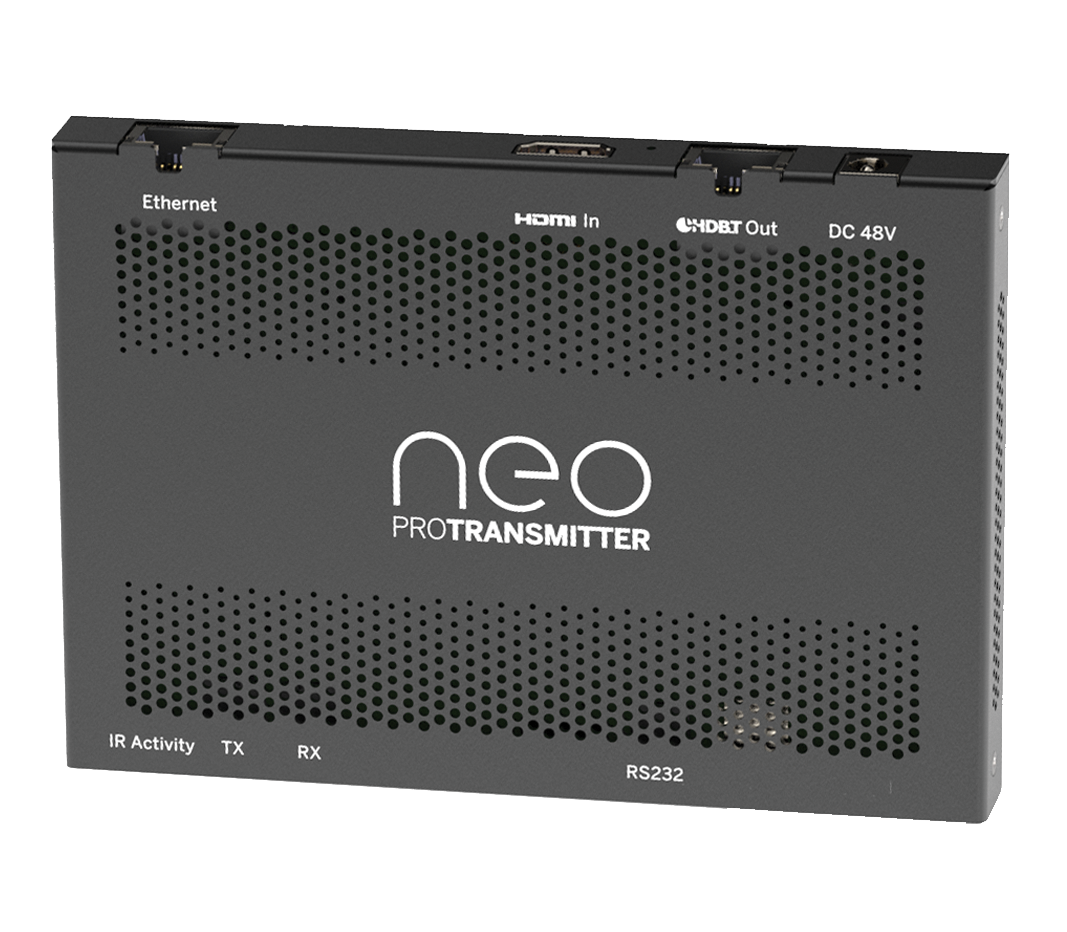

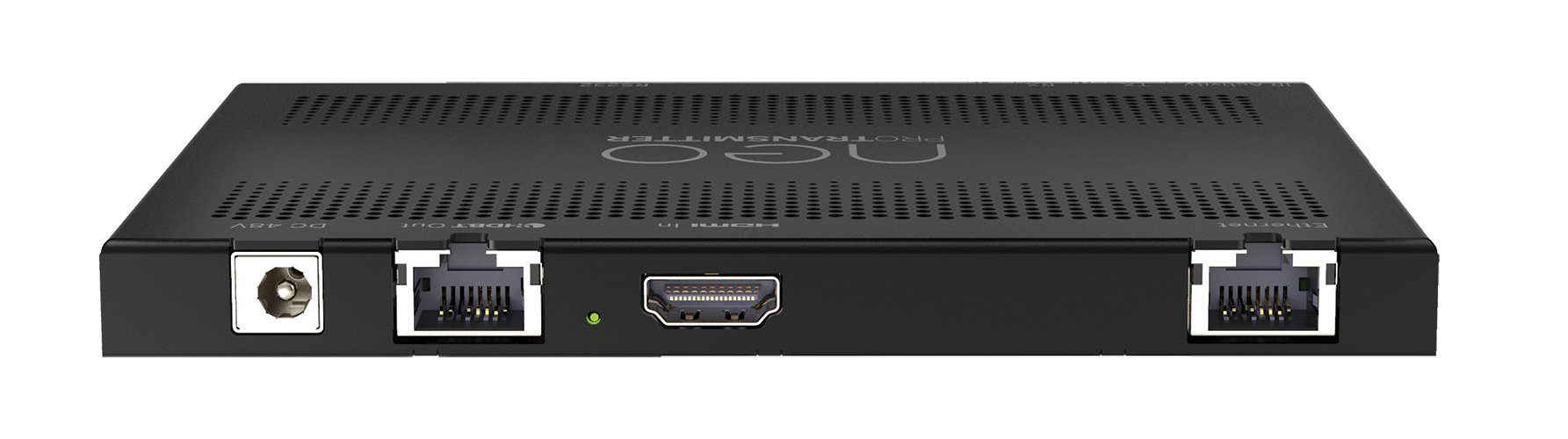

neo:Pro Transmitter

Available only through select professional installers
Call us on 01202 413 610 (UK), (858) 748-8250 (US) or email [email protected] for more information


Featuring the most powerful Class C HDBaseT technology for projects that demand all the benefits of HDBaseT transmission, the neo:Pro Receiver supports 100m transmissions of 1080p@60Hz and Ultra HD 4K@60Hz 4:2:0 over 70m

With power over HDBaseT (PoH) remote power from transmitter to receiver and bidirectional control via IR and RS232 all along a single Cat5e/6 cable.


Manufacturer: Pulse-Eight
SKU: P8-HDBT2-P-TX

This product is designed to work with the neo:Pro Receiver.

UltraHD 4K transmissions of 2160p@30Hz/24bit are supported up to 70m - both broadcast/consumer 3840 (UHD) and commercial 4096 (DCI) - with chroma sub-sampling rates of 4:2:2 offering the optimum refresh rate to colour palette ratio required to transmit high quality and reliable 4K signals within 340Mhz bandwidth support.



KEY FEATURES:
 Full UHD 4K transmission support within the 10.2Gbs spectrum of HDMI® 1.4 standard HDCP 2.2 compliant
Transmits discreet wide-band two-way IR control signal / serial control commands together within HDMI® signal over a single Cat5e/6
24bit True Colour (4K), 36bit Deep Colour (HD)
One-way PoH (Power over HDBaseT) transmitter passes power along the Cat5e/6 to remotely power the receiver - no mains power required at the display
Multichannel HD audio supports 7.1 DTS Master HD and Dolby True HD
Robust Class A HDBaseT transmission technology for stable distribution and control resistant to electrostatic and environmental interference compared to conventional UTP transmission
Supports all high definition resolutions: 4K@2160p (3840 UHD & 4096 DCI) HD@1080p, 1080i, 720p with screen refresh rates support of 24Hz, 30Hz (4K), 50Hz and 60Hz (HD)
Full 3D compatibility up to 1080p - frame packing/sequential (Blu-ray) and interlaced stereoscopic (satellite/ cable broadcasts)
10/100 Ethernet pass-through

Pulse-Eight UltraHD 4K HDBaseT solutions offer the features, flexibility and compatibility demanded by modern integrations today while future-proofing for tomorrow, combined with an ease of use and cost-efficiency where reliable distribution and control of digital content over distance is required in a residential or commercial setting



*Please note, this product requires a receiving device to work (i.e. neo:Pro Receiver - sold separately)
