neo:Ultra Receiver

Available only through select professional installers
Call us on 01202 413 610 or email sales@pulse-eight.com for more information


The Ultimate Class C HDBaseT technology plus DSC (Display Stream Compression) for a visually lossless 4K/60Hz 4:4:4 image.

The neo:Ultra Receiver allows 1080p transmission up to 150m* and Ultra HD 4K/60Hz 4:4:4 up to 100m.

With power over HDBaseT (PoH) remote power from transmitter to receiver and bidirectional control via IR and RS232 all along a single Cat5e/6 cable.

*1080p 150 meters long range on request (100 meters as standard)


Manufacturer: Pulse-Eight
SKU: P8-HDBT2-U-RX

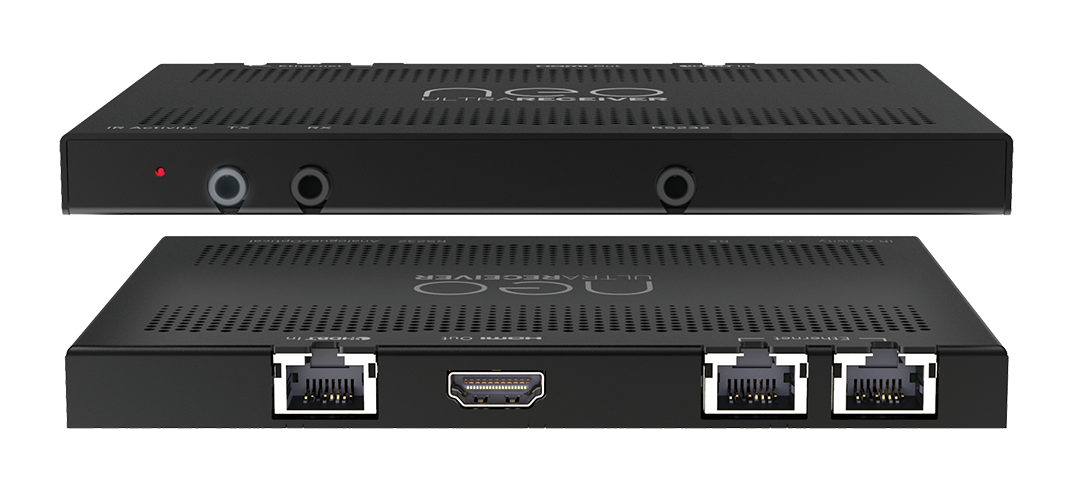

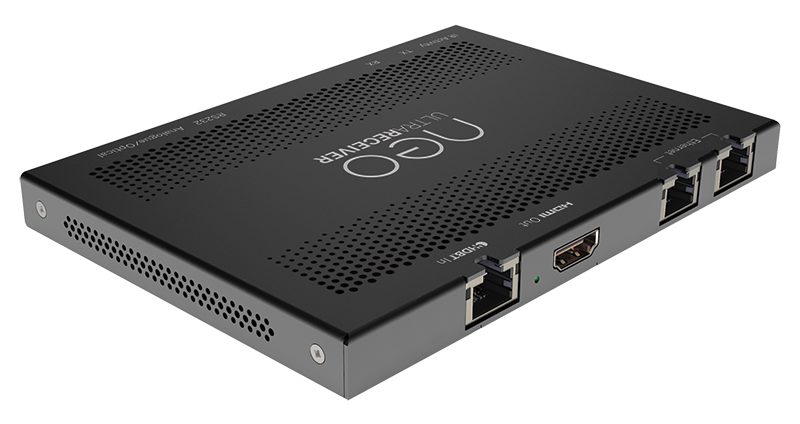

Our ultra slim (13mm high) HDBaseT Receiver with Display Stream Compression (DSC) a visually lossless video compression technology that applies extremely light line by line compression that causes no latency.

KEY FEATURES:
• An ultra thin 13mm depth enclosure
• Extend 1080p up to 150* meters over a single Cat5e/6/7 cable
• Extend 4K up to 100 meters over a single Cat5e/6/7 cable
• Wall Mountable
• ARC (Audio Return Channel), enabling audio from the TV to be returned to the remote location with just the HDMI cable
• Bi-Directional Infra-Red Transmission
• Ethernet 10/100 Connection
• Audio return via Analogue or Toslink
• Serial RS232 via 3.5mm
• HDCP 2.2 Compliant
• DSC support - for HDR and 4K/60 4:4:4 over HDBaseT link

*Please note, this product requires a transmitting device to work (i.e. neo:Ultra Transmitter or neoX+ Matrix  - sold separately)
*1080p 150 meters long range on request (100 meters as standard)
