Key Technologies:
libCEC Built In

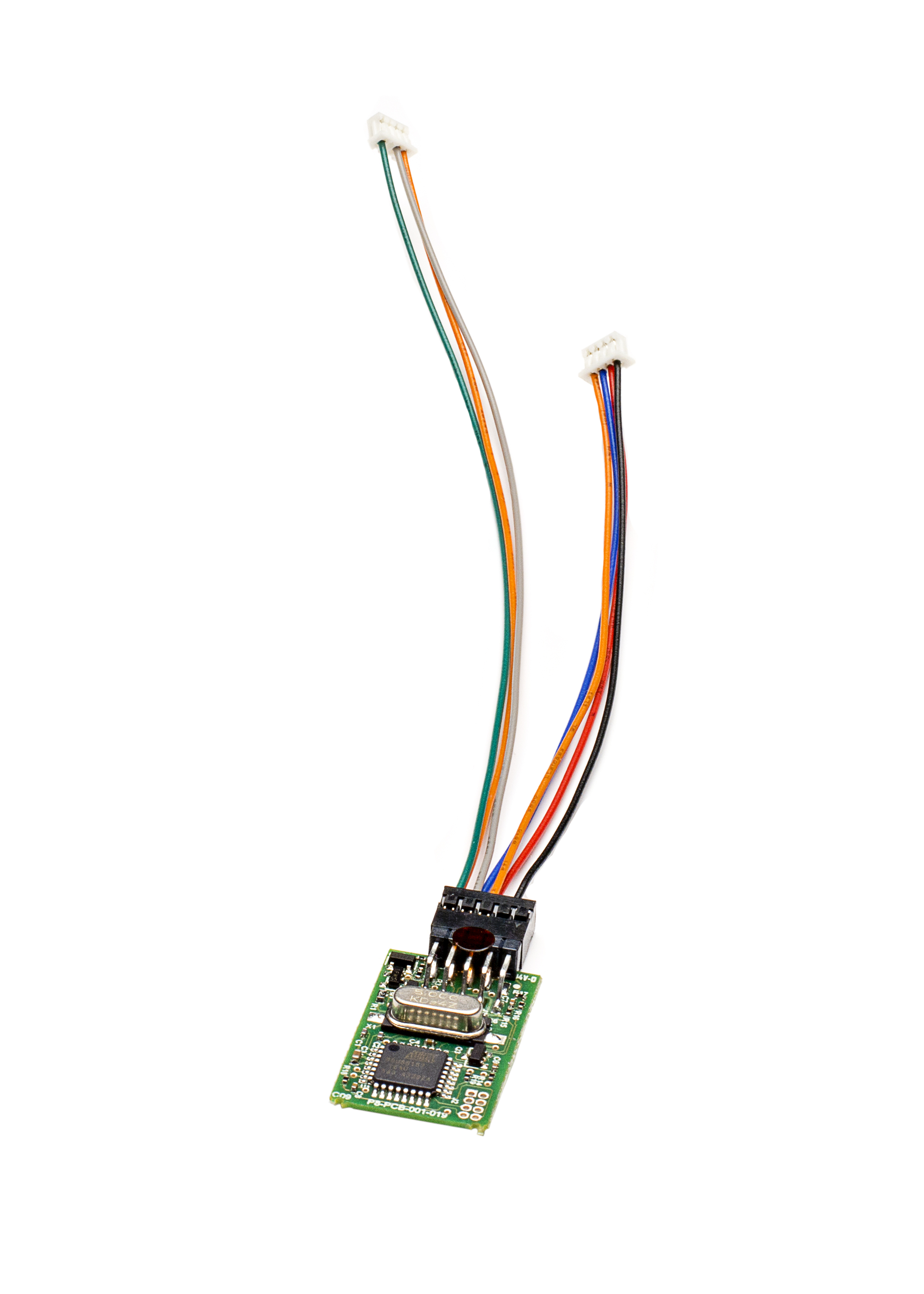

Intel NUC HDMI-CEC Adapter

Availability: In stock

Wiring Harness
USD $29.07

Integrate our ever popular CEC technology inside your NUC, using the existing stock enclosure!

Our latest generation of HDMI-CEC communication hardware has been specifically designed to fit inside the standard NUC enclosure between the WiFi mPCI Board and the Memory modules.

This adapter will allow your TV to turn the NUC on from S5 (cold boot) and S3 (suspend), additionally turning the NUC on can wake the TV from its standby.

Remote control signals from your TV remote are sent via the HDMI® cable into the NUC allowing you to control any application on the desktop using Up/Down/Left/Right keys on your TV remote control.

Deep integration with Kodi provides the richest experience possible.

This adapter also supports EventGhost and Windows Media Centre.

Compatible with Windows, Linux (including OpenELEC) and Mac OS X.

This adapter is not compatible with the 11th generation NUC. Intel have removed the header, so if you want to use our adapter (libCEC/Kodi), then you’ll need a USB-CEC adapter instead. This adapter only works on <= gen 10 NUC, if it has a CEC or custom solutions header.




Manufacturer: Pulse-Eight
SKU: P8-NUCCECv1

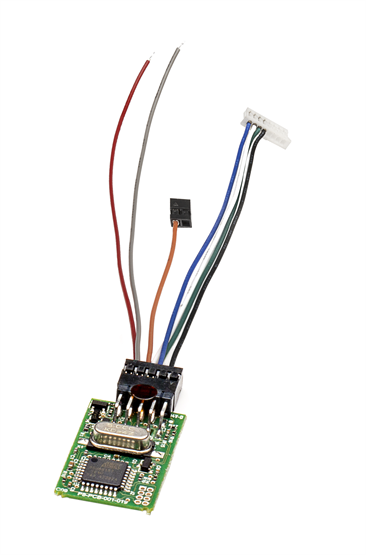

Custom wiring loom allows us to support the various different pin-out combinations of the NUC

Compatible with most models of the Intel NUC*

Included installation guide provides step by step photos on how to disassemble your NUC, install the adapter and get yourself up and running

Unsupported Models

Unfortunately we have identified a number of NUCs that we are unable to support, these are listed below

  • DN2820 family
  • NUC5PPYH, NUC5PGYH and NUC5CPYH, NUC5CPYB
  • DC53427HYE, NUC6i7KYK, D53427RKE and DC33217GKE, DC3217IYE
  • All 11th generation models (external adaptor recommended)

* 5th generation Broadwell series NUCs require soldering for the  power pins

* models that lack a CEC pin, may require soldering



Community Verified Models

  • NUC11PAHi7 does have the CEC headers
  • NUC11PAHi7/NUC11PABi7 does have the CEC connectors
